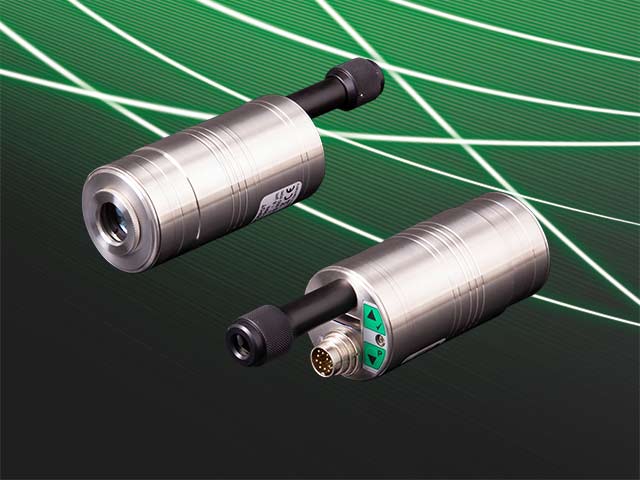

德国DIAS红外公司扩充了红外测温仪的型号，目前推出的是PYROSPOT 55系列红外测温仪。紧凑型数字式红外测温仪55系列具备不锈钢外壳(IP65，直径50mm)，用于工业测温。测温范围>75°C，适合金属、石墨或陶瓷等物体测温，最快响应时间为2ms(t95)，可用于快速运动的物体测温。在该系列红外测温仪的后盖上，有一个清晰刻度的OLED显示器及2个控制按键，用于显示被测温度及调整红外测温仪参数。
Different optics for small target sizes小目标用不同的光学系数
有3种固定固定焦距，最小可测目标直径为0.8mm，距离系数最大300:1。 As a special feature, instead of the fixed optics, a vario optics with motorized focus is optionally available in this pyrometer series. The user can easily adjust the focus using the control buttons on the device or via interface and software.
Always perfectly aligned总是精确瞄准
The exact alignment of the pyrometers on the measurement object is possible with an integrated laser aiming light or an optical through-lens sighting. Alternatively, an integrated color video camera can be used. This video camera facilitates installation in difficult local conditions, where the pyrometer is difficult to reach or the measurement object is not visible.
Local networks局域网
With the temperature linear standard output signal of 0/4 to 20 mA, the pyrometers can be easily integrated into existing measurement and control systems. The pyrometers have also a galvanically isolated RS-485 interface. Therefore the devices are bus compatible and use the Modbus RTU protocol. Connection in local networks can be supported by an Ethernet interface box.
The PYROSPOT DS 55N and DG 55N are suitable for temperature measurements from 550 °C to 3000 °C (spectral range 0.8 µm to 1.1 µm) or 200 °C or 2500 °C (spectral range 1.5 µm to 1.8 µm) respectively. The pyrometer DGE 55N can measure temperatures between 75 ° C and 2200 ° C (spectral range from 2.0 µm to 2.6 µm), with a particularly “long” continuous measuring range from 150 ° C to 2200 ° C. The ratio pyrometer PYROSPOT measures temperatures from 500 ° C to 3000 ° C in two closely spaced spectral ranges between 0.7 μm and 1.1 μm and enables almost emissivity-independent temperature measurement.
The pyrometers can be parameterized via the digital interface with the PYROSOFT Spot software. Alternatively, the emissivity or ratio correction parameter and motor focus can also be set directly on the device using the buttons and the display.
更多信息:
- 德国DIAS红外公司PYROSPOT系列红外测温仪
- PYROSPOT Series 55 系列红外测温仪更多信息
